Allow for the full intake column
The 33-inch dimension describes the heater body. The black telescoping intake rises above it, with a stainless protective grille over the stones. Preview the complete assembly against your room height in 3D.
Current heater
Saunum AIR Black (Closed Basket)
Compare electric heaters
Saunum · Made in Estonia · verify the exact model listing

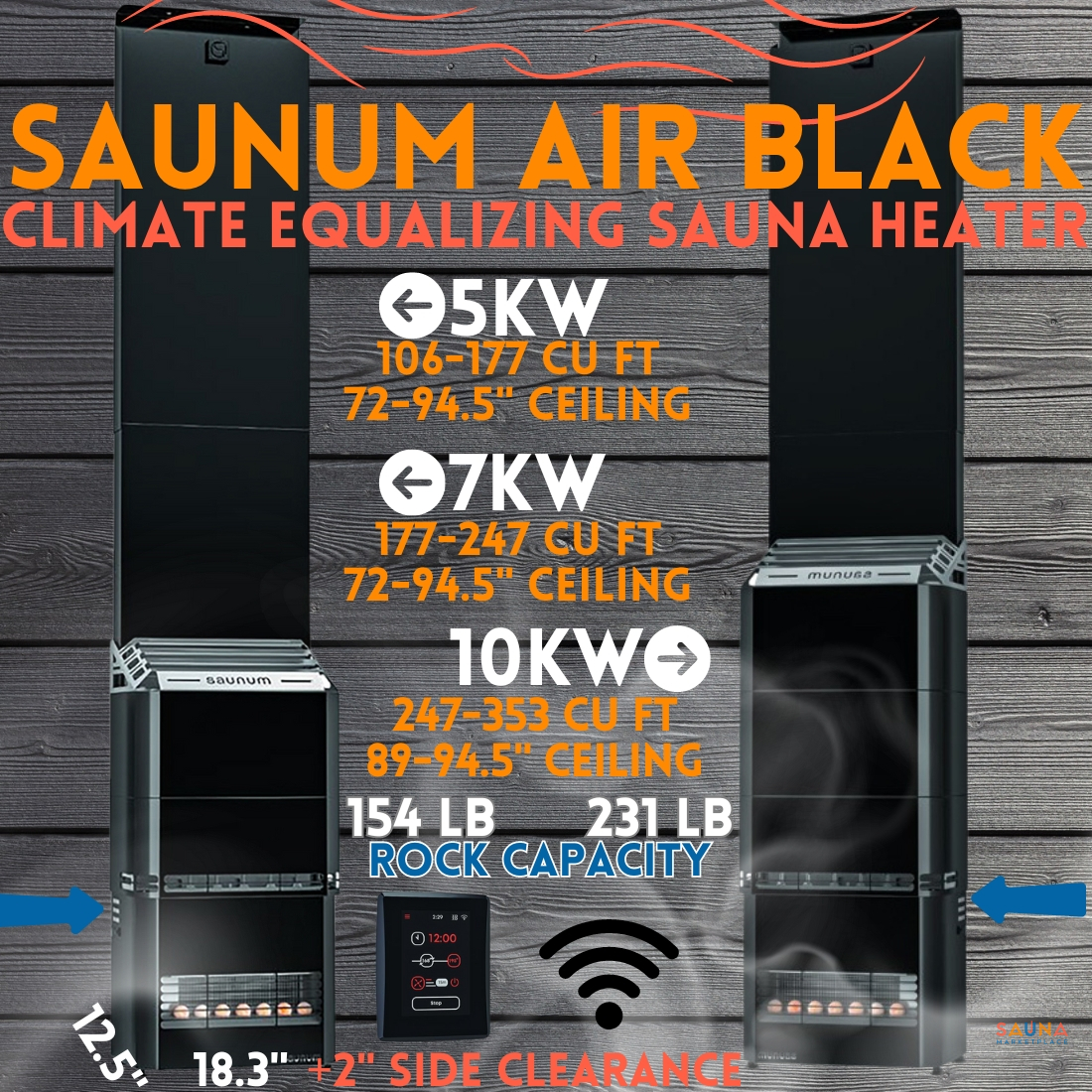

Saunum AIR Black (Closed Basket) sauna heater
The climate-equalizing heater that fixes electric sauna stratification - in the solid Nordic Black body with just 2" side clearances.
Electric saunas run 200F at your head and under 100F at your feet. The Saunum AIR pulls that scorching ceiling air down, blends it with oxygen-rich floor air, and returns soft, even heat - with AirIQ Wi-Fi control, Saunum-paired stones, Himalayan salt spheres, and an external temperature sensor all in the box.
From $4,565 heater-only · free US shipping
| Size | SKU | Heater price | Room fit |
|---|---|---|---|
| 5 kW | 4745090017830 | $4,565 | 106-212 cu ft - compact rooms around 6 x 5 ft and small barrels |
| 7 kW | 4745090017847 | $4,765 | 177-318 cu ft - the sweet spot for most home sauna builds |
Buy the Saunum AIR Black (Closed Basket) — secure checkout Design with Saunum AIR Black (Closed Basket) in 3D
- Free shipping in the continental US
- UL listed for North America (UL 875 / CSA C22.2 No. 164)
- AirIQ Wi-Fi controller, Saunum-paired stones, Himalayan salt spheres, and external temp sensor included
- Ships from the greater Chicago distribution center
- Sold and supported by the Bens at Sauna Marketplace - Saunum owners and US-market R&D partners since launch
Solves stratification, not just heat
A quiet fan draws the hottest air off the ceiling and mixes it with cooler, oxygen-rich floor air. Saunologia’s long-term reviewer measured his ceiling-to-floor spread drop from over 30C to under 15C - even heat where you actually sit and breathe.
Born from Estonian smoke saunas and TalTech research
Thermal engineer Andrus Vare designed Saunum around the soft, stone-heavy heat of historic Estonian smoke saunas, with stratification research done alongside Tallinn University of Technology. Designed and built in Estonia.
Right-sized for smaller saunas
The AIR series is the Saunum we reach for in smaller rooms, and the solid Nordic Black body needs only 2" to combustibles at the sides with rear-against-wall placement - so it fits compact rooms and barrel saunas the open basket cannot. 110 lb of stone still delivers long, soft steam.
Five saunas in one heater
Classic Nordic, steam-rich, mild relaxing, salt-ion, and aroma sessions - set temperature, fan speed, and intake valve from the included AirIQ Wi-Fi controller or the free Saunum app, with three programmable presets.
Everything in the box
Sauna Marketplace ships every Saunum with paired stones, the AirIQ Wi-Fi controller, Himalayan salt spheres, an external temperature sensor, and the latest prewired power box for a simpler install.
Nobody knows Saunum like the Bens at Sauna Marketplace
The Bens have worked hand-in-hand with the Saunum team since the brand first reached the US, run Saunum heaters in their own saunas, and have been part of Saunum pilot projects, testing, and R&D tuned for the US market. When you have a sizing, install, or steam question, you are talking to the people who helped shape the US lineup.
Saunum AIR Black (Closed Basket) is a wall-mounted heater from Saunum for 106-318 cu ft adjusted sauna rooms. Key planning facts: 4.95-6.9 kW output, 110 lb stone capacity, and 73" minimum finished ceiling guidance, and controller guidance: Saunum AirIQ Wi-Fi controller.
Design with Saunum AIR Black (Closed Basket) Buy in North America at Sauna Marketplace
Quick answers
What is Saunum AIR Black (Closed Basket)?
Saunum AIR Black (Closed Basket) is a wall-mounted heater from Saunum with 4.95-6.9 kW output and 110 lb stone capacity.
What sauna room size fits Saunum AIR Black (Closed Basket)?
The published adjusted room-volume range is 106-318 cu ft. Add glass, tile, stone, brick, concrete, or log exposure before choosing the final kW row.
What clearances does Saunum AIR Black (Closed Basket) need?
Plan 2.00" side/back clearance, 20" front clearance, and a 73" minimum finished ceiling check before placing benches or glass.
Which controller works with Saunum AIR Black (Closed Basket)?
Current controller guidance: Saunum AirIQ Wi-Fi controller. Match the controller, relay or power unit, and voltage to the selected kW row before ordering.
Where should I start with Saunum AIR Black (Closed Basket)?
Use the 3D designer to validate the room, benches, openings, clearances, and material schedule, then use Sauna Marketplace for the current package and buying path.
Saunum AIR Black (Closed Basket) size and clearance table
| Variant | Power | Room volume | Dimensions | Rocks | Side/back | Front | Minimum ceiling | Controller |
|---|---|---|---|---|---|---|---|---|
| AIR 5AIR 5 | 4.95 kW | 106-212 cu ft | 18.3" W x 12.4" D x 33" H | 110 lb | 2.00" | 20" | 73" | Saunum AirIQ Wi-Fi controller |
| AIR 7AIR 7 | 6.9 kW | 177-318 cu ft | 18.3" W x 12.4" D x 33" H | 110 lb | 2.00" | 20" | 73" | Saunum AirIQ Wi-Fi controller |
Best fit
- 4.95-6.9 kW Saunum heater family for 106-318 cu ft adjusted hot rooms.
- Wall-mounted layouts where the heater footprint, front clearance, and bench approach are planned before ordering.
- 110 lb stone capacity with Saunum AirIQ Wi-Fi controller controller guidance.
- Rooms that can meet the 73" minimum finished ceiling check for the selected size row.
- Wall blocking, cladding buildup, and heater bottom height should be resolved before paneling goes in.
Designer checks
- Size the room by adjusted volume, including the 3.0 cu ft per sq ft for glass, tile, stone, brick, concrete, or log surfaces rule where it applies.
- Validate side/back clearance 2.00", front clearance 20", and bench setback before finalizing benches.
- Check the 73" minimum finished ceiling against the room height.
- Carry the selected Saunum AirIQ Wi-Fi controller package into the material schedule and heater placement notes.
Package notes
- Saunum circulating sauna heater
- 110 lb; 110 lb
- Wi-Fi enabled Saunum AirIQ controller
Manual-backed facts
Source
Saunum AIR US installation and operation manual
source: SaunaMarketplace Saunum Air, Air L, and Air Perfect 2026 product manuals/downloads (Air US ENG V_25_10.4; Air L US ENG V_25_12.1; Air Perfect US V_26_1.1; checked May 24, 2026)
Mounting
Wall-mounted
Floor clearance shows the minimum bottom height where the manual lists one.
Model numbers
AIR 5 / AIR 7
Useful when the store name and manual model number are not identical.
Room volume range
106-318 cu ft
Use adjusted sauna volume after cold surfaces, not just geometric room volume.
Cold-surface adder
3.0 cu ft per sq ft for glass, tile, stone, brick, concrete, or log surfaces
The calculator applies the brand-family coefficient before selecting a heater size.
Minimum finished ceiling
73"
Computed from body height, floor clearance, top clearance, and the manual minimum room height.
Maximum room height
95"
Sizes with a maximum ceiling should not be stretched beyond this value without manufacturer review.
Electrical/control
240 V single phase; Saunum AirIQ Wi-Fi controller
Use the selected kW row and SKU when matching breakers, phases, relays, and controller packages.
Critical differences
AirIQ control system required Use Saunum glass/tile/stone/log adjusted-volume rules before sizing
9 more notes shown below.
- AirIQ control system required
- Use Saunum glass/tile/stone/log adjusted-volume rules before sizing
- Only one sauna device may be installed in the sauna room
- Do not connect through a GFCI breaker (Saunum US manuals)
- 240V 1PH, 20.63 A, 30 A breaker, (2) #10 + N + G copper
- 240V 1PH, 28.75 A, 40 A breaker, (2) #8 + N + G copper
- Current public AIR heater manual file. Confirm final packaged attachments before ordering.
- Saunum AIR-family pages require AirIQ control, the Saunum cold-surface adder, and one sauna device per room.
- Saunum US manuals forbid GFCI breakers and require min 90C copper wiring; in-sauna cable below 40 in AFF must be rated 194F (T125-class), above 40 in or in-wall 257F (SSJ-type).
- Saunum discontinued the AIR 10 (non-L). The Dec 2025 AIR manual (V_25_12.1) covers AIR 5 and AIR 7 only - older manuals listing an AIR 10 are out of date. For roughly 10 kW rooms use AIR L 10 or AIR Perfect 10.
- Closed black basket: 2 in side/front safety distance to combustibles; only the rear may touch the wall; max 3.9 in niche depth.
