Harvia

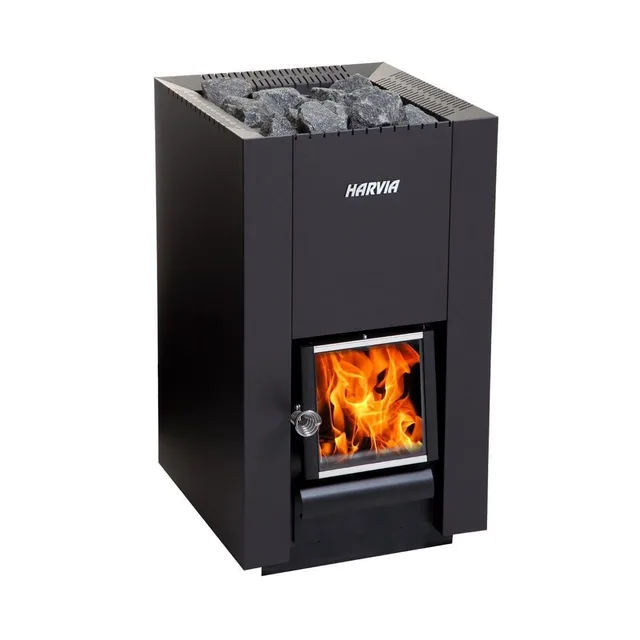

Harvia Linear Wood
Wood stove · Wood
- Power
- 15.7 to 17.9 kW
- Room
- 212–565; 318–636 cu ft
- Stones
- 79.37 to 88.18 lb
- Controls
- Wood fire
- Service
Harvia Linear Wood: sizes, clearances and 3D · Linear 22 GreenFlame
WOOD-BURNING SAUNA STOVES
Wood-burning sauna stoves: wood heat, planned around the chimney.
Pick by room volume and where you want to feed the fire. Then plan the chimney, the shields and the floor before the walls go up.
Wood-burning sauna stoves in 3D
-
-
Harvia

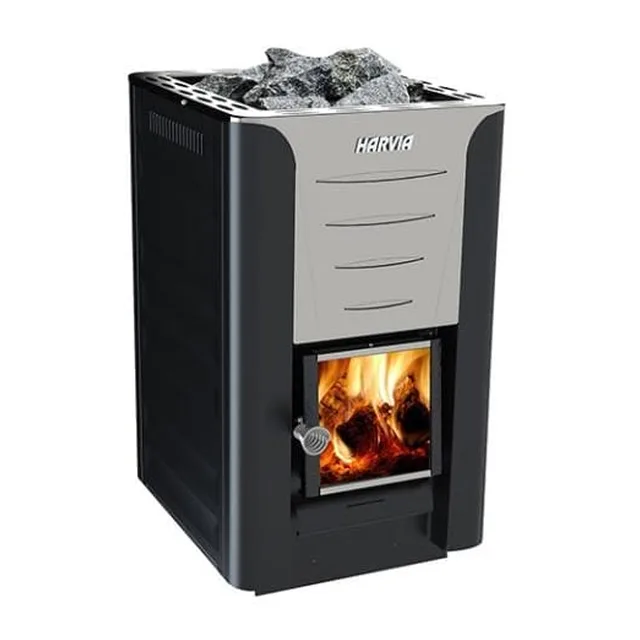

Harvia Pro Wood
Wood stove · Wood
- Power
- 24.1 to 31 kW
- Room
- 283–706; 353–918; 494–1271 cu ft
- Stones
- 88.18 to 132.28 lb
- Controls
- Wood fire
- Service
- Feeds from outside
-
Harvia

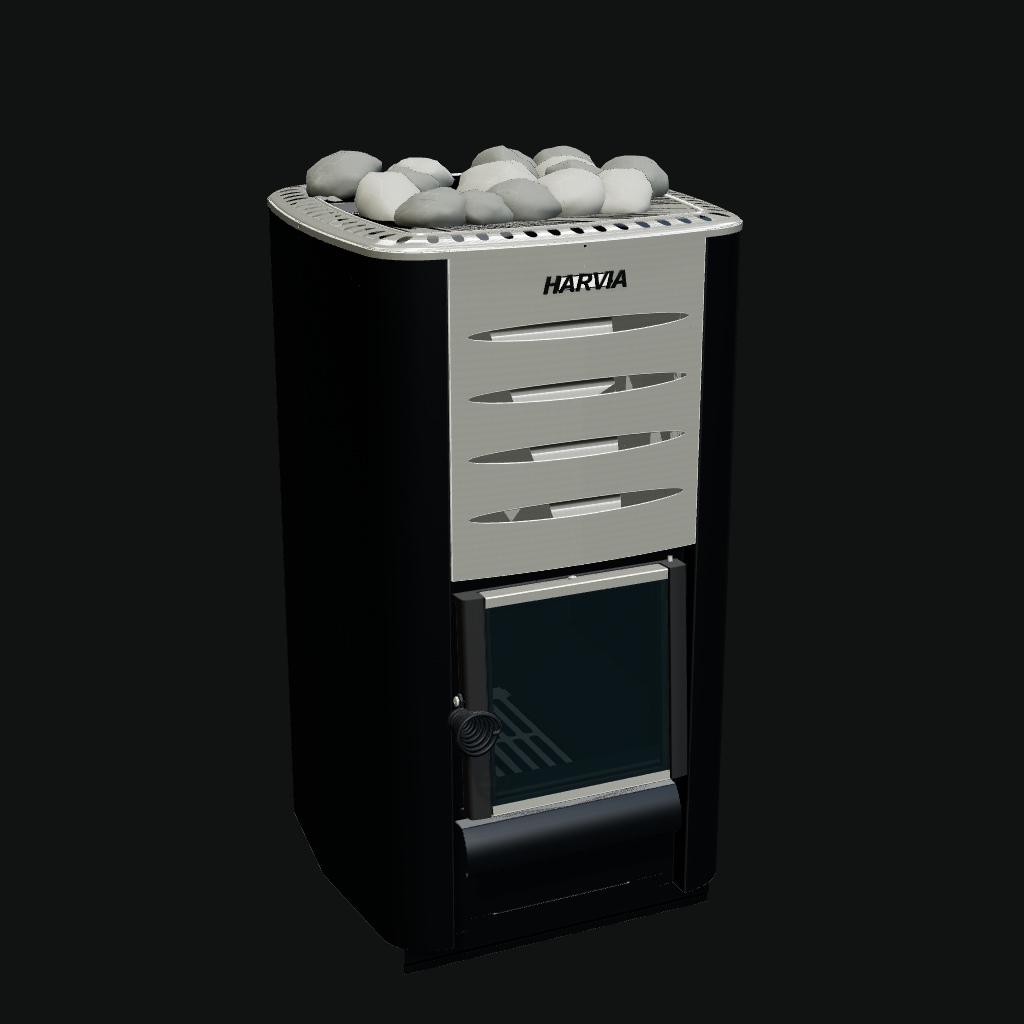

Harvia M3 Wood Stove
Wood stove · Wood
- Power
- 16.5 kW
- Room
- 212–459 cu ft
- Stones
- 66.14 lb
- Controls
- Wood fire
- Service
- Feeds from outside
Harvia M3 Wood Stove: sizes, clearances and 3D · M3 SL, fed from outside
-
Harvia

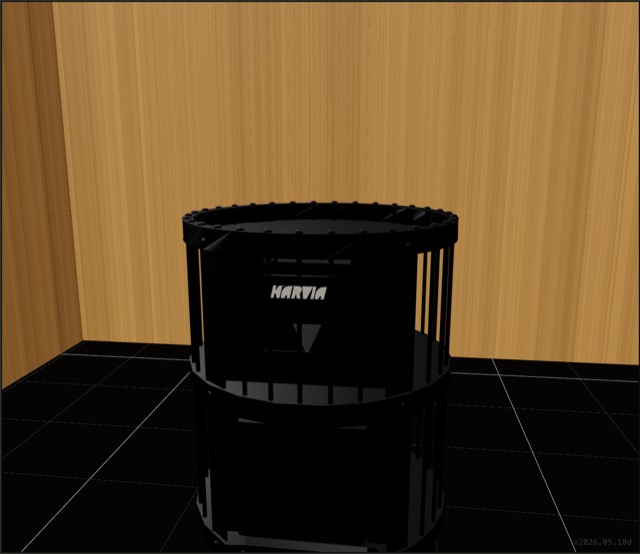

Harvia Legend Wood
Wood stove · Wood
- Power
- 15.9 to 16 kW
- Room
- 212–459; 353–706 cu ft
- Stones
- 264.55 to 440.92 lb
- Controls
- Wood fire
- Service
- 200 lb or more of stones
-
Harvia
Harvia Legend GreenFlame 240
Wood stove · Wood
- Power
- 15.9 kW
- Room
- 353–706 cu ft
- Stones
- 440.92 lb
- Controls
- Wood fire
- Service
- 200 lb or more of stones
-
Cozy Heat
Cozy SW 18
Wood stove · Wood
- Power
- 18 kW
- Room
- 318–636 cu ft
- Stones
- 396.83 lb
- Controls
- Wood fire
- Service
- Glass door
- 200 lb or more of stones
Each card opens the heater’s SaunaDesignPro page with its 3D model. Heaters not yet modeled are at Sauna Marketplace: every listing.
Every wood stove on the numbers that decide.
Ratings follow the matching variants and electrical connections. Room volume includes each manufacturer’s glass allowance.
| Heater | Type | Power | Room volume | Stones | Controls | Lowest ceiling | Side clearance |
|---|---|---|---|---|---|---|---|
| Harvia Linear Wood | Wood stove, wood | 15.7 to 17.9 kW | 212–565; 318–636 cu ft | 79.37 to 88.18 lb | Wood fire | See the manual | See the manual |
| Harvia Pro Wood | Wood stove, wood | 24.1 to 31 kW | 283–706; 353–918; 494–1271 cu ft | 88.18 to 132.28 lb | Wood fire | See the manual | See the manual |
| Harvia M3 Wood Stove | Wood stove, wood | 16.5 kW | 212–459 cu ft | 66.14 lb | Wood fire | See the manual | See the manual |
| Harvia Legend Wood | Wood stove, wood | 15.9 to 16 kW | 212–459; 353–706 cu ft | 264.55 to 440.92 lb | Wood fire | See the manual | See the manual |
| Harvia Legend GreenFlame 240 | Wood stove, wood | 15.9 kW | 353–706 cu ft | 440.92 lb | Wood fire | 82.68 in | See the manual |
| Cozy SW 18 | Wood stove, wood | 18 kW | 318–636 cu ft | 396.83 lb | Wood fire | 87.01 in | 9.06 in |
Four things to settle before you choose.
Short answers to what decides a wood stove, each from the manuals printed on SDP’s heater planning pages.
Size it on the room, then add for glass
Multiply width by depth by ceiling height: a 6 by 7 ft room with a 7 ft ceiling is 294 cu ft. Each heater is rated for a range of room volume, and the room has to land inside it.
Glass, tile and stone soak up heat, so makers add to the volume for them. Harvia adds 3.94 cu ft for every square foot, HUUM 3.3 and Saunum 3.0. A 24 by 80 in glass door is 13.3 sq ft, so that room counts as about 347 cu ft for a Harvia. The sizer at the top of this page does the sum for each maker.
Sources: Harvia KIP planning page · HUUM DROP planning page · Saunum AIR Black (Closed Basket) planning pageThe chimney comes first
Plan the flue before the stove. The Harvia M3 and Legend connect to a 4.5 in, T600-rated chimney. Harvia’s WHP steel chimney goes straight up through the roof, and Harvia specifies it for standalone outdoor sauna buildings; indoors, your installer specifies a listed chimney.
Check the stove’s top clearance against your ceiling as well: the M3 asks for a finished ceiling of at least 79 in.
Sources: Harvia M3 Wood Stove planning page · Harvia Legend Wood planning pageShields shrink the clearances
A wood stove needs room around it. A heat shield made for the stove lets it sit closer: Harvia’s WL400 or WL450 sheath brings the M3 to about 2 in from the side and rear walls, with 12 in kept clear in front.
Put a non-combustible base under the stove, and follow the manual for the floor in front of the door.
Sources: Harvia M3 Wood Stove planning pageFed from inside, or from outside
Most stoves are fed through a door in the sauna. A through-wall version is fed from the next room or from outside, so ash and wood stay out of the hot room: the Harvia M3 SL and the Pro 20 SL work this way.
A through-wall stove sets where the wall goes, so choose it before the walls are framed. The designer places it on the wall you pick.
Sources: Harvia M3 SL listing · Harvia Pro series listing · The SaunaDesignPro designerQuestions about wood-burning sauna stoves
What chimney does a wood sauna stove need?
The one its manual names. The Harvia M3 and Legend connect to a 4.5 in, T600-rated chimney. Harvia’s WHP steel chimney goes straight up through the roof and is specified for standalone outdoor sauna buildings; indoors, your installer specifies a listed chimney.
Sources: Harvia M3 Wood Stove planning page · Harvia Legend Wood planning pageHow close can a wood stove be to the wall?
It depends on the stove and its shield. With Harvia’s WL400 or WL450 sheath, the M3 sits about 2 in from the side and rear walls, with 12 in kept clear in front. Without a shield the distances are larger; each stove’s page prints them.
Sources: Harvia M3 Wood Stove planning pageCan I feed the stove from outside the sauna?
Yes, with a through-wall version such as the Harvia M3 SL or the Pro 20 SL. Choose it before the walls are framed.
Sources: Harvia M3 SL listing · Harvia Pro series listingKeep looking
